Steinway Vertical #15225 Rosewood - “Double-Iron” Frame (Patent Resonator)

Broadwood Square 8
Steinway 15225

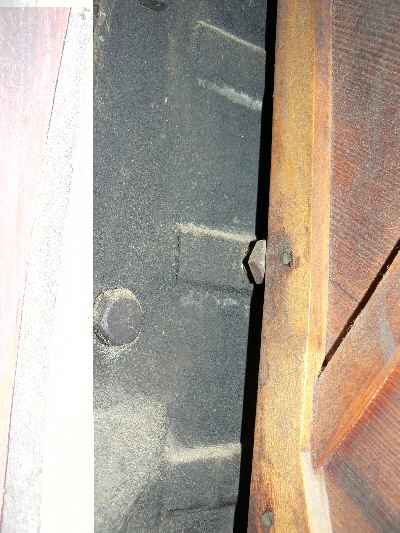

P1000080

The bolts throughout the perimeter of the plate were meant to compress the soundboard, or to maintain support for the soundboard crown as the perimeter might shrink in size.  The vertical piano effectively implemented this “Patent Resonator” concept for the entire perimeter of the soundboard, unlike the production grands, which only compressed at the belly rail or fhe front line of the soundboard.

This use of iron as a cage-like structure to support the perimeter compression of the soundboard was used throughout nearly all verticals built from 1866-1872.

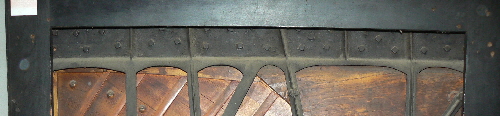

Steinway 15225 Plate support for pinblock

Another innovation was the support of the pinblock by the plate extension of the plate.  .

Steinway 15225 Leg

Legs on these early Steinway verticals were similar to the rococo grand piano leg designs

First Sold May 28, 1968 to the retailer Blasius and Sons in Philadelphia.  Style 1 crossed out and replaced with Style 2, but the more simple cabinet style of this cabinet is Style 1.
